100A Siemens Load Center Maintenance Breaker

Designed and manufactured in Canada to Siemens high quality standards, the CSA-certified weatherproof loadcentre is built to meet the requirements of the most demanding outdoor applications. This best-in-class loadcentre offers features for fast installation and the dependable quality our customers demand. Industry-exclusive gasketed hinged door, copper bussing, patented INSTA-WIRE™ screws and provision for rain-tight hubs provide durable weatherproof protection in combination with labour-saving installation.

Key features and benefits:

• Type 3R enclosure designed for outdoor applications
• CSA-certified loadcentres available up to 200A with interrupting rating of 100kA for main lug and 22kA for main breaker loadcentres
• Accepts up to 40 standard or 80 tandem circuits for more flexibility
• Gasketed hinged door for improved weatherproof protection
• Copper bus for increased corrosion resistance
• Rainproof hub to maintain weatherproof rating
• Lockable latched door for added safety
• Fully distributed neutral and ground bars to save cost and installation time
• Faster and easier installation through INSTA-WIRE™ screw design
• Robertson™ slot screws for installation ease and flexibility
• Designed and manufactured in Canada for Canadian weatherproof requirements

120/240V 24CCT 100A SIDE MCB, WHITE DOOR
Weight: 3 lbs

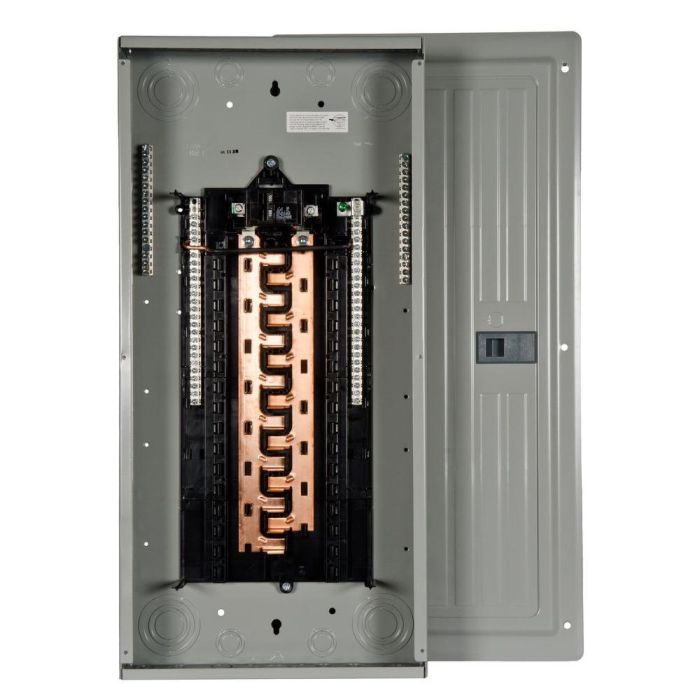

Siemens introduces PL Series Load Centers - a new high quality and feature-rich line of load center products to meet applications for virtually every need. The PL Series load center provides maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PL load centers feature the patented insta-wire neutral/ground system, convertibility, copper bussing, and mounting tabs on the trim - these features were specifically engineered to decrease installation time and increase flexibility.
Single phase 100-Amp main breaker load center with 30 spaces/30 circuits
Features Siemens patented insta-wire technology which allows for quick and easy installation because screws are already backed out, ready for wire insertion on ground and neutral bars
Copper bus
All devices are provided with 2 factory installed ground bars
Combination head screw on the neutrals, ground, trim, upper pan, and bond screw provide installation flexibility
All PL series devices convertible from main lug to main breaker and vice versa
Mounting tabs on the trim hold the load center in place freeing up both hands to drive the trim screws
A rigid, sturdy base pan provides the ruggedness required for the harshest applications
NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist

DIMENSIONS
Load center depth (in.)
32.38
Load center width (in.)
16
Load center height (in.)
5.75
DETAILS
Electrical Product Type
Load Center
Number of Phases
1
Indoor/Outdoor
Indoor
Number of Spaces
30
Load Center Type
Main Breaker
Product Weight (lb.)
32 lb
Maximum Amperage (amps)
100
Returnable
90-Day
Mounting type
Plug In
Voltage (volts)
240
