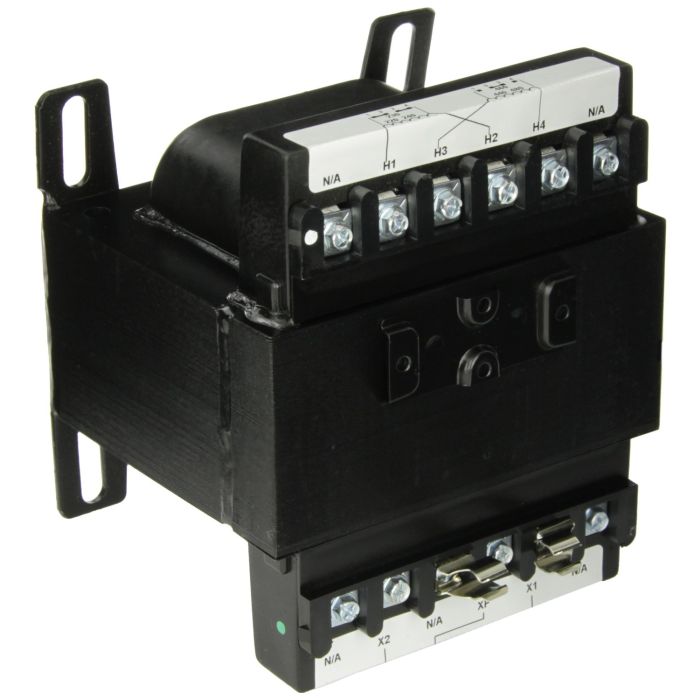

500VA 240/480V Siemens Class MT Industrial Control Power Transformer

Features:
• Epoxy-encapsulated (50–750VA); epoxy resin impregnated (1.0–5.0 KVA). Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments.
• Fuse clips (most models). Factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit.
• Integrally molded barriers. Between terminals and transformer, protect against electrical creepage. Up to 30% greater terminal contact area permits low-loss connections. Extra-deep barriers reduce the chance of shorts from frayed leads or careless wiring.
•
Terminals. Molded into the transformer, are difficult to break during wiring. A full quarter-inch of thread on the 10-32 terminal screws prevents stripping and pullout.

• Jumpers supplied. Two jumper links are standard with all transformers which can be wired for dual primary voltages.
