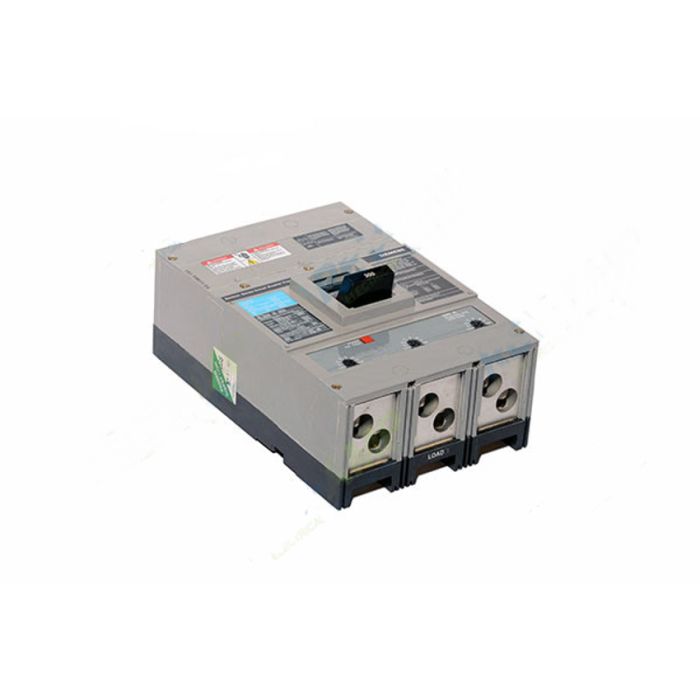

600Amp 600V CLD6-A Frame Sentron® Non-Interchangeable Trip (Assembled Circuit Breaker)
$7,422.60
In stock
SKU
SIECLD63B600
Complete Breaker Unassembled with Lugs
Prices of LD6, HLD6, and HHLD6 breakers include frame, trip, and both line and load lugs (TA2J6500).
Prices of LD6, HLD6, and HHLD6 breakers include frame, trip, and both line and load lugs (TA2J6500).
Complete Breaker Unassembled with Lugs
Prices of LD6, HLD6, and HHLD6 breakers include frame, trip, and both line and load lugs (TA2J6500). When ordered by these catalog numbers, the customer will receive
the frame, trip and lugs separately packaged. For applications requiring different lugs, order individual items as needed.
Complete Breaker Assembled without Lugs
Prices of LXD6, HLXD6, HHLXD6, and CLD6 include frame with noninterchangeable
trip unit installed only. Order required lugs separately. For line and load lugs (TA2J6500) installed, add suffix “L” to catalog number (add 2 times list price of
lugs for each pole).
100% Rated
Types LXD6 and HLXD6 breakers are available with 100% ratings. To order add suffix “H” to catalog number, and 10% to list price. 100% rated LD breakers require the use of 90°C Cu cable sized at 75°C ampacity and lugs TC1J6600 or TC2J6500
Prices of LD6, HLD6, and HHLD6 breakers include frame, trip, and both line and load lugs (TA2J6500). When ordered by these catalog numbers, the customer will receive
the frame, trip and lugs separately packaged. For applications requiring different lugs, order individual items as needed.
Complete Breaker Assembled without Lugs
Prices of LXD6, HLXD6, HHLXD6, and CLD6 include frame with noninterchangeable
trip unit installed only. Order required lugs separately. For line and load lugs (TA2J6500) installed, add suffix “L” to catalog number (add 2 times list price of
lugs for each pole).
100% Rated
Types LXD6 and HLXD6 breakers are available with 100% ratings. To order add suffix “H” to catalog number, and 10% to list price. 100% rated LD breakers require the use of 90°C Cu cable sized at 75°C ampacity and lugs TC1J6600 or TC2J6500
| SKU | SIECLD63B600 |
|---|---|
| Bestseller | No |
| Brand | Siemens |
| Featured | No |
| Manfacturer Part No. | CLD63B600 |
| Sales Unit | EACH |
| Wire Count | 33 |
