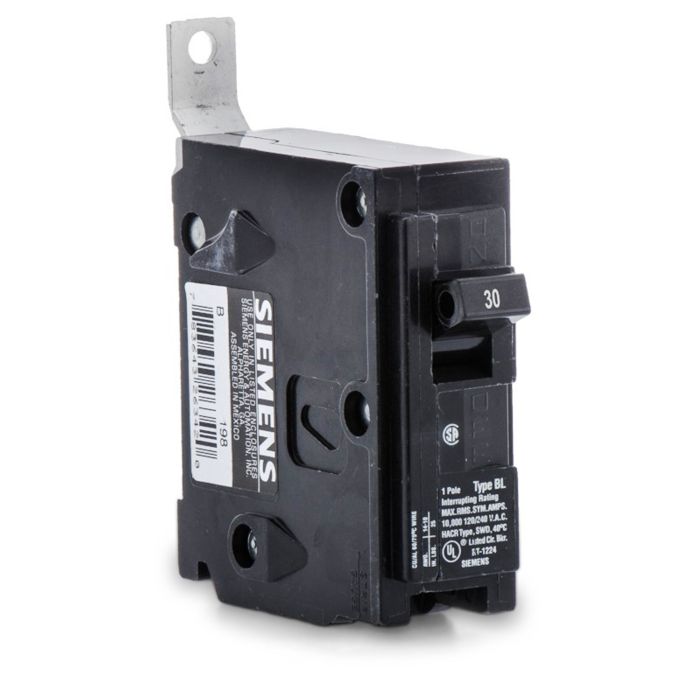

30Amp 120V 22kA 1-Pole Siemens Type BLH Bolt-On Molded Case Circuit Breaker
$31.67
In stock
SKU
SIEB130H
Siemens BL breakers provide easy bolt-on connections in Siemens panelboards.
Siemens BL breakers provide easy bolt-on connections in Siemens panelboards.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker’s operating handle restores the circuit.
All circuit breakers perform the following functions:
• SENSE when an over current occurs
• MEASURE the amount of over current
• ACT by tripping quickly enough to prevent damage to itself and associated conductors
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker’s operating handle restores the circuit.
All circuit breakers perform the following functions:
• SENSE when an over current occurs
• MEASURE the amount of over current
• ACT by tripping quickly enough to prevent damage to itself and associated conductors
| SKU | SIEB130H |
|---|---|
| Amperage | 30A |
| Application | For Use With Siemens Panelboards |
| Brand | Siemens |
| Certification | UL Listed, HACR Rated |
| Color | Black |
| Dimension Height | 3-3/4 Inch |
| Dimension Length | 2-3/8 Inch |
| Dimension Width | 1 Inch |
| Interrupt Rating | 22 |
| Manfacturer Part No. | B130H |
| Poles | 1 Pole |
| Special Features | Features: UL listed for use with 60/75 DEG C wire through 125 AMP, 120 VAC fluorescent lighting; Includes: Insta Wire; Mounting: Bolt-On |
| Sales Unit | EA |
| Voltage | 120 V |
