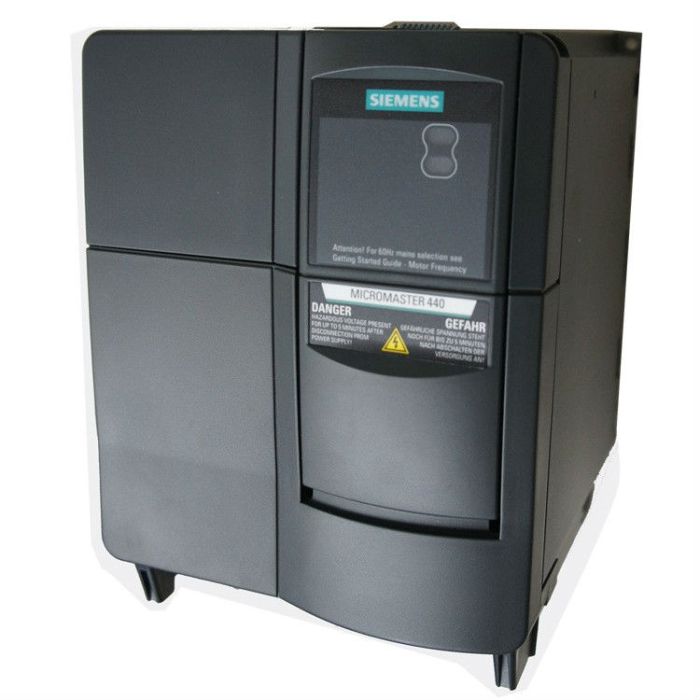

7.5kW 10hp MICROMASTER 440 Inverter

The MICROMASTER 440 inverter is suitable for a variety of variable-speed drive applications. Its flexibility provides for a wide spectrum of applications. These also Include cranes and hoisting gear, high-bay warehouses, production machines for food, beverages and tobacco, packaging machines etc.; i.e. applications which require the frequency inverter to have a higher functionality and dynamic response than usual.
The inverter is especially characterized by its customer-oriented performance and ease-of-use. Its large mains voltage range enables it to be used all over the world.

Main characteristics
■ Easy, guided start-up
■ Modular construction allows maximum configuration flexibility
■ Six programmable isolated digital inputs
■ Two scaleable analog inputs (0 V to 10 V, 0 mA to 20 mA) can also be used as a 7th/8th digital input
■ Two programmable analog outputs (0 mA to 20 mA)
■ Three programmable relay outputs (30 V DC/5 A resistive load; 250 V AC/2A inductive load)
■ Low-noise motor operation thanks to high pulse frequencies, adjustable (observe de-rating if necessary)
■ Complete protection for motor and inverter.
