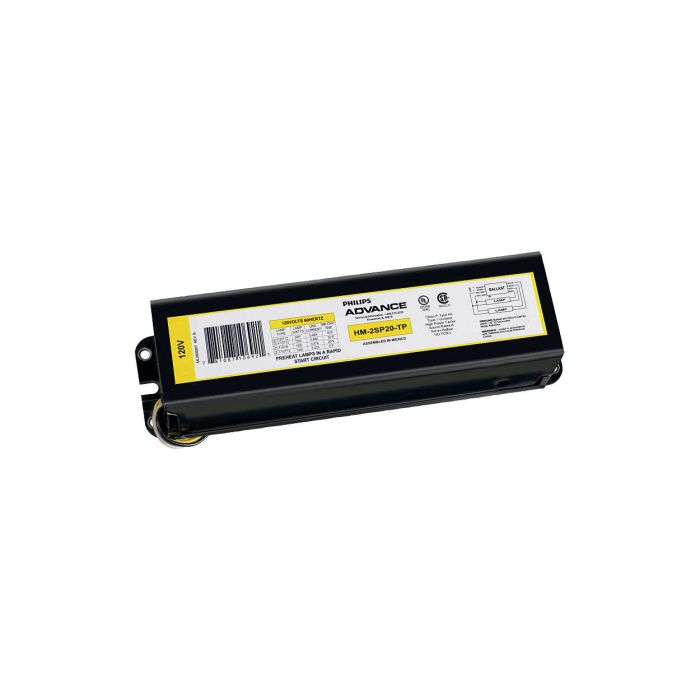

120V Philips Advance Standard Magnetic Ballast, Black
$59.17
In stock
SKU
PHIRL2SP20TPM
STANDARD MAG BALLAST (2) F20T12 PH 120V
Each ballast is designed to operate at the nominal voltage shown on the Philips Advance ballast label.
Each ballast is designed to operate at the nominal voltage shown on the Philips Advance ballast label.
Available for many fluorescent lamp types sold today, including Preheat, Rapid Start, 2-pin CFL, Slimline, High Output, Very High Output and Circline. Magnetic ballasts can be used in any application where these lamps are used.
Each ballast is designed to operate at the nominal voltage shown on the Philips Advance ballast label. Abnormal deviation from these values will result in damage to either the ballast or lamp or both. It is therefore necessary that the voltage applied to ballasts be maintained within the respective limits shown in the adjoining table.A ballast subjected to higher than nominal voltages will typically operate at increased temperatures. This will result in reduced ballast life. Low voltage can cause premature lamp failures as well as unreliable lamp starting
Each ballast is designed to operate at the nominal voltage shown on the Philips Advance ballast label. Abnormal deviation from these values will result in damage to either the ballast or lamp or both. It is therefore necessary that the voltage applied to ballasts be maintained within the respective limits shown in the adjoining table.A ballast subjected to higher than nominal voltages will typically operate at increased temperatures. This will result in reduced ballast life. Low voltage can cause premature lamp failures as well as unreliable lamp starting
SKU | PHIRL2SP20TPM |
---|---|
Amperage | 0.49A |
Application | Standard magnetic ballast for F20T12 |
Bestseller | No |
Brand | Philips |
Certification | UL, CSA, RoHS |
Color | Black |
Dimension Height | 1.9685 Inch |
Dimension Length | 5.4134 Inch |
Dimension Width | 1.9685 Inch |
Material | Metal |
Manfacturer Part No. | RL2SP20TPM |
Sales Unit | EA |
Voltage | 120V |
