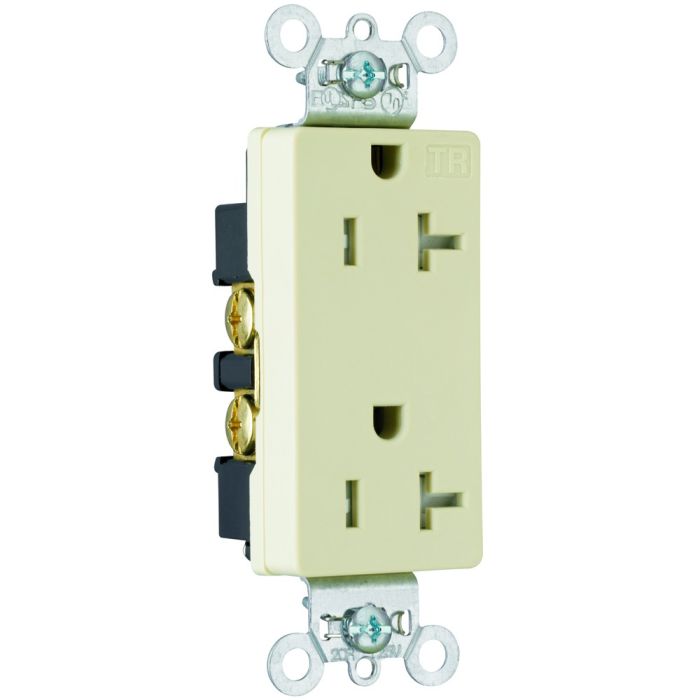

20A 125V Pass & Seymour® Tamper-Resistant Heavy-Duty Decorator Spec Grade Receptacle, Ivory
$11.16
In stock
SKU
PASTR26362I
Features & Benefits:
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
Features & Benefits:
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
SKU | PASTR26362I |
---|---|
Amperage | 20 A |
Bestseller | No |
Brand | Pass & Seymour |
Certification | CSA certified, UL listed, UN SPS C: 39121406 |
Color | Ivory |
Dimension Height | 3.281 in |
Dimension Width | 1.32 in |
Featured | No |
Manfacturer Part No. | TR26362I |
Sales Unit | EA |
Voltage | 125V |
Voltage AC Max | 125V |
Wire Count | 0.23 |
YouTube Link | https://www.youtube.com/watch?v=CjT4MIzB4sw |
