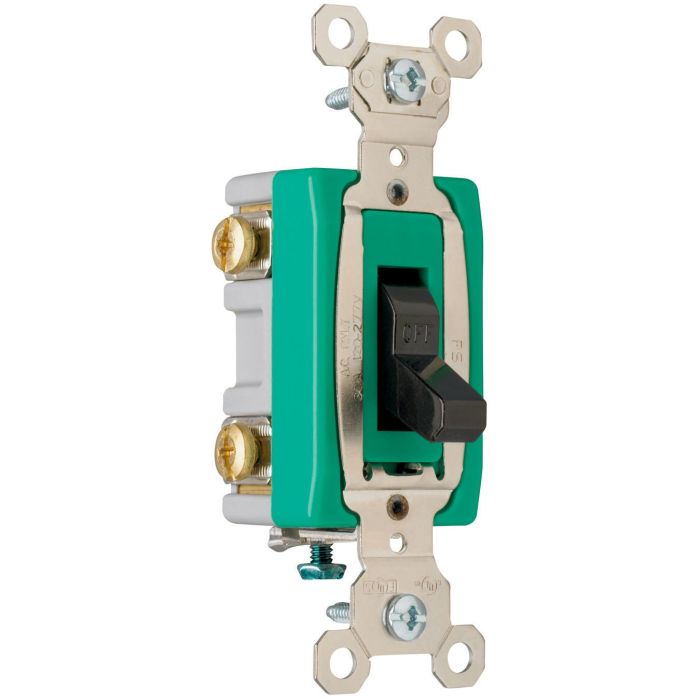

30A 120/277V Pass & Seymour® Manual Controller Double Pole, Single Phase Switch
$66.19
In stock
SKU
PASPS30AC2HP
Double Pole, Single Phase Switch, Back and Side Wire, HP Rated. 30 amps, 277 volts.
High horsepower rating, up to 3HP for heavy-duty applications. Compact design provides ease of installation. Box lug terminals. Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life. Made in USA. Wire pockets and thick wall arc barriers. Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements. Type 3R enclosure has 2-1/2 inch, 3/4 inch, and 1 inch concentric knockouts on bottom. Accepts #4 AWG. cULus listed.
| SKU | PASPS30AC2HP |
|---|---|
| Amperage | 20A |
| Application | Designed for commercial, and industrial applications |
| Bestseller | No |
| Brand | Pass & Seymour |
| Certification | UN SPS C: 39121507 |
| Color | Black |
| Dimension Height | 3.281" |
| Dimension Width | 1.320" |
| Featured | No |
| Manfacturer Part No. | PS30AC2HP |
| Poles | 2-way |
| Sales Unit | EA |
| Voltage | 120/277V |
