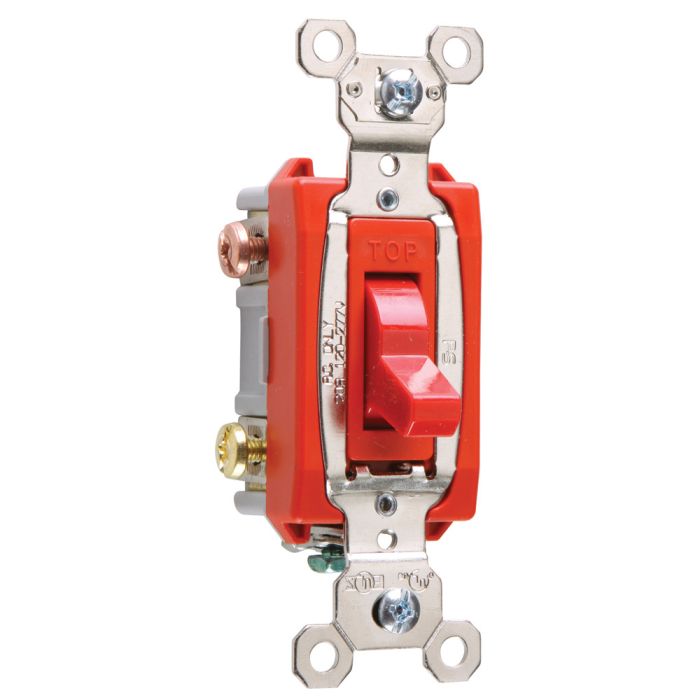

20Amp 120/277V Legrand® Pass & Seymour® Industrial Extra Heavy-Duty Specification Grade Switch, Red
$28.19
In stock
SKU
PASPS20AC3RED
3-way Toggle Switch, Back & Side Wire, 20amp 120/277volt, Red
3-way Toggle Switch, Back & Side Wire, 20amp 120/277volt, Red.
Features & Benefits:
• External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
• Cam controls fast "make" and positive "break" to minimize arcing.
• Heavy-duty bumper pads for quiet operation.
• High strength thermoplastic polycarbonate toggle.
• Back body made of glass-reinforced nylon.
• Locking support provides resistance to face and back body separation.
• Oversized silver alloy contacts for long life and better heat dissipation.
• Grounding terminal is standard.
• Shallow design for ease of istallation.
• Strap nickel-plated steel with integral ground.
• Auto-ground clip assures positive ground.
Features & Benefits:
• External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
• Cam controls fast "make" and positive "break" to minimize arcing.
• Heavy-duty bumper pads for quiet operation.
• High strength thermoplastic polycarbonate toggle.
• Back body made of glass-reinforced nylon.
• Locking support provides resistance to face and back body separation.
• Oversized silver alloy contacts for long life and better heat dissipation.
• Grounding terminal is standard.
• Shallow design for ease of istallation.
• Strap nickel-plated steel with integral ground.
• Auto-ground clip assures positive ground.
| SKU | PASPS20AC3RED |
|---|---|
| Amperage | 20A |
| Application | For hospital, industrial, institutional, and other high-abuse applications. |
| Bestseller | No |
| Brand | Pass & Seymour |
| Certification | CSA listed, UL listed, UN SPS C: 39121507 |
| Color | Red |
| Dimension Height | 3.281 Inch |
| Dimension Width | 1.320 Inch |
| Featured | No |
| Material | Glass-reinforced nylon body |
| Manfacturer Part No. | PS20AC3RED |
| Poles | 3-way |
| Special Features | Oversized silver alloy contacts for long life and better heat dissipation. |
| Sales Unit | EA |
| Voltage | 120/277VAC |
