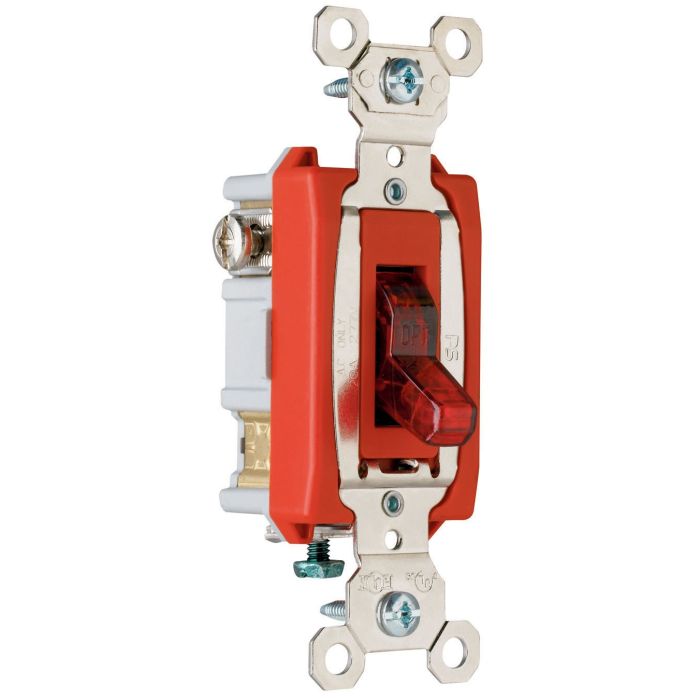

20A 120/277V Pass & Seymour® Industrial Extra Heavy-Duty Specification Grade Switch, Lighted When On, Back & Side Wire, Red
$52.82
In stock
SKU
PASPS20AC1RPL
1-Pole Pilot Lighted Switch, Back & Side Wire, 20amp 120volt, Red.
1-Pole Pilot Lighted Switch, Back & Side Wire, 20amp 120volt, Red.
Features & Benefits:
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
- Cam controls fast "make" and positive "break" to minimize arcing.
- Heavy-duty bumper pads for quiet operation.
- High strength thermoplastic polycarbonate toggle.
- Back body made of glass-reinforced nylon.
- Locking support provides resistance to face and back body separation.
- Oversized silver alloy contacts for long life and better heat dissipation.
- Grounding terminal is standard.
- Shallow design for ease of installation.
- Strap nickel-plated steel with integral ground.
- Auto-ground clip assures positive ground.
Features & Benefits:
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
- Cam controls fast "make" and positive "break" to minimize arcing.
- Heavy-duty bumper pads for quiet operation.
- High strength thermoplastic polycarbonate toggle.
- Back body made of glass-reinforced nylon.
- Locking support provides resistance to face and back body separation.
- Oversized silver alloy contacts for long life and better heat dissipation.
- Grounding terminal is standard.
- Shallow design for ease of installation.
- Strap nickel-plated steel with integral ground.
- Auto-ground clip assures positive ground.
| SKU | PASPS20AC1RPL |
|---|---|
| Amperage | 20A |
| Application | Designed for industrial applications |
| Bestseller | No |
| Brand | Pass & Seymour |
| Certification | CSA certified, UL listed, UN SPS C: 39121507 |
| Color | Red |
| Dimension Height | 3.281" |
| Dimension Width | 1.320" |
| Featured | No |
| Material | High strength thermoplastic polycarbonate |
| Manfacturer Part No. | PS20AC1RPL |
| Poles | Single |
| Sales Unit | EA |
| Voltage | 120VAC |
