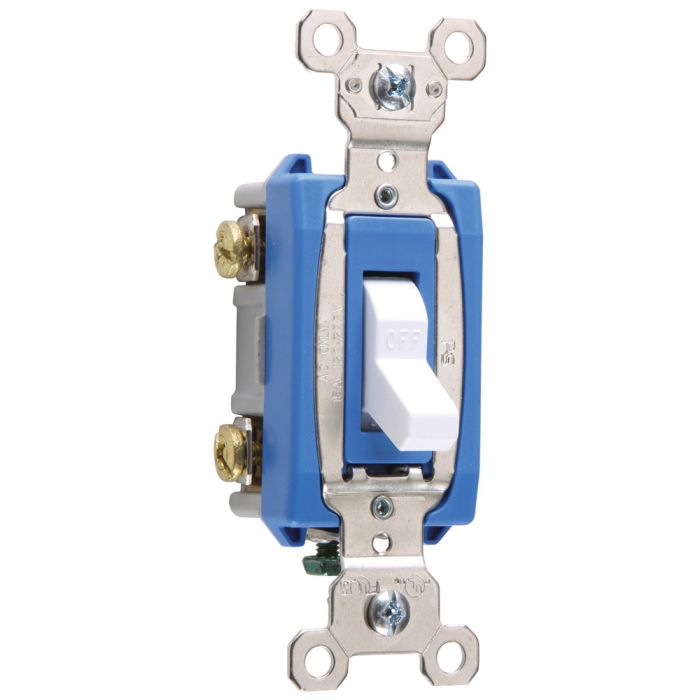

15Amp 120/277V Legrand® Pass & Seymour® Industrial Extra Heavy-Duty Specification Grade Switch, White
$14.83
In stock
SKU
PASPS15AC2W
2-Pole Toggle Switch, Back & Side Wire, 15amp 120/277volt, White
2-Pole Toggle Switch, Back & Side Wire, 15amp 120/277volt, White
Features & Benefits:
• External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
• Cam controls fast "make" and positive "break" to minimize arcing.
• Heavy-duty bumper pads for quiet operation.
• High strength thermoplastic polycarbonate toggle.
• Back body made of glass-reinforced nylon.
• Locking support provides resistance to face and back body separation.
• Oversized silver alloy contacts for long life and better heat dissipation.
Features & Benefits:
• External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
• Cam controls fast "make" and positive "break" to minimize arcing.
• Heavy-duty bumper pads for quiet operation.
• High strength thermoplastic polycarbonate toggle.
• Back body made of glass-reinforced nylon.
• Locking support provides resistance to face and back body separation.
• Oversized silver alloy contacts for long life and better heat dissipation.
| SKU | PASPS15AC2W |
|---|---|
| Amperage | 15A |
| Application | For hospital, industrial, institutional, and other high-abuse applications. |
| Bestseller | No |
| Brand | Pass & Seymour |
| Certification | UN SPS C: 39121507 , CSA certified, UL listed |
| Color | White |
| Dimension Height | 3.281 Inch |
| Dimension Width | 1.320 Inch |
| Featured | No |
| Material | Glass-reinforced nylon body |
| Manfacturer Part No. | PS15AC2W |
| Poles | 2 |
| Special Features | Impact-Resistant |
| Sales Unit | EA |
| Voltage | 120/277VAC |
