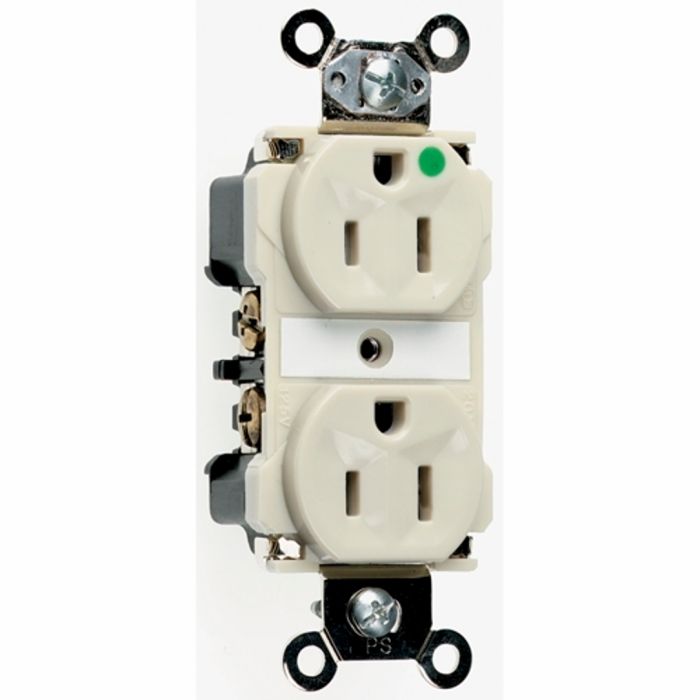

15Amp 125V Legrand® Pass & Seymour® Extra Heavy-Duty Hospital Grade Receptacle, Light Almond

$12.00
In stock
SKU
PAS8200LA
Extra Heavy-Duty Hospital Grade Receptacles, Back & Side Wire, 15A, 125V, Light Almond
Extra Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 15amp 125volt Light Almond

Features & Benefits:
• One-piece nickel-plated brass mounting strap with integral ground.
• Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
• Two drive screws anchor strap to back body and face.
• Exclusive patented feature, circuit label on face allows permanent circuit identification.
• .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
• Impact-resistant nylon face and back body.
• Oversized #10 deep tri-drive head brass terminal and ground screws.
• Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
• External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
• Line terminals accept #14 - #10 AWG stranded or solid copper-clad conductors.
• Auto-ground clip assures positive ground.
• Illuminated version features exclusive LED lamp with solder connection for long durable life (10-12 years).
More Information
SKU PAS8200LA
Amperage 15A
Bestseller Yes
Brand Pass & Seymour
Certification CSA certified, UL listed
Color Ivory
Dimension Height 3.281 in
Dimension Width 1.625 Inch
Featured No
Material Impact Resistant Nylon
Manfacturer Part No. 8200LA
Special Features Back,Side Wire
Sales Unit EA
Voltage 125V
