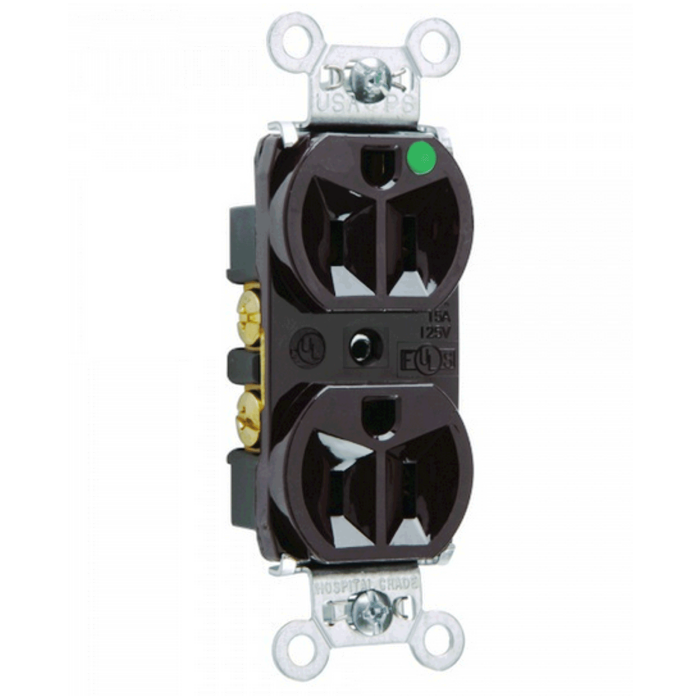

15A 125V Pass & Seymour® Heavy-Duty Hospital Grade Compact Design Duplex Receptacle, Brown
$7.74
In stock
SKU
PAS8200H
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 15amp 125volt Brown
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back & Side Wire 15amp 125volt Brown
Features and Benefits:
- Impact-resistant nylon face.
- One-piece heat-treated triple-wipe brass power contacts.
- Easily accessible break-off line contact connecting tab for split circuit wiring.
- Corrosion-resistant, zinc-plated steel strap is locked in.
- Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors.
- High strength thermoplastic back body.
- Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment.
- Auto-ground clip assures positive ground.
- Compact design for easy installation.
- Tri-drive terminal and mounting screws.
Features and Benefits:
- Impact-resistant nylon face.
- One-piece heat-treated triple-wipe brass power contacts.
- Easily accessible break-off line contact connecting tab for split circuit wiring.
- Corrosion-resistant, zinc-plated steel strap is locked in.
- Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors.
- High strength thermoplastic back body.
- Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment.
- Auto-ground clip assures positive ground.
- Compact design for easy installation.
- Tri-drive terminal and mounting screws.
| SKU | PAS8200H |
|---|---|
| Amperage | 15A |
| Application | For hospital, industrial, institutional, and other high-abuse applications. |
| Bestseller | Yes |
| Brand | Pass & Seymour |
| Certification | CSA certified, UL listed |
| Color | Brown |
| Dimension Height | 3.281 in |
| Dimension Width | 1.322 in |
| Featured | No |
| Material | High Strength Thermoplastic |
| Manfacturer Part No. | 8200H |
| Special Features | Back,Side Wire |
| Sales Unit | EA |
| Voltage | 125 V |
