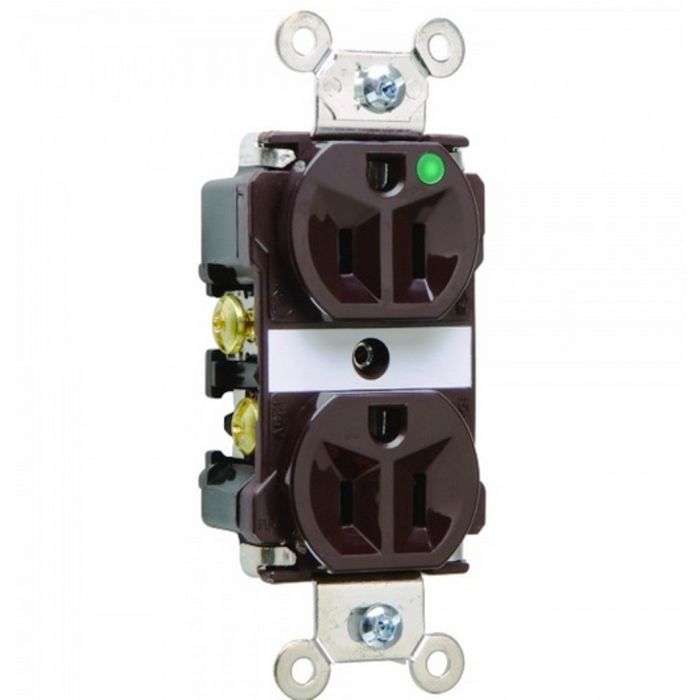

15A 125V Pass & Seymour® Extra Heavy-Duty Hospital Grade Dup;ex Receptacle, Brown
$12.00
In stock
SKU
PAS8200
Extra Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 15amp 125volt Brown
Extra Heavy-Duty Hospital Grade Duplex Receptacle Back & Side Wire 15amp 125volt Brown
Features and Benefits:
- One-piece nickel-plated brass mounting strap with integral ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Two drive screws anchor strap to back body and face.
-Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and back body.
- Oversized #10 deep tri-drive head brass terminal and ground screws.
-Exclusive patented feature, external screw-pressure-plate back wire clamp on -ground terminal for faster, easier installation.
-External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
Features and Benefits:
- One-piece nickel-plated brass mounting strap with integral ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Two drive screws anchor strap to back body and face.
-Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and back body.
- Oversized #10 deep tri-drive head brass terminal and ground screws.
-Exclusive patented feature, external screw-pressure-plate back wire clamp on -ground terminal for faster, easier installation.
-External nickel-plated screw-presure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
| SKU | PAS8200 |
|---|---|
| Amperage | 15A |
| Application | For hospital, industrial, institutional, and other high-abuse applications. |
| Bestseller | Yes |
| Brand | Pass & Seymour |
| Certification | CSA certified, UL listed |
| Color | Brown |
| Dimension Height | 3.281 in |
| Dimension Width | 1.625 in |
| Featured | No |
| Material | Impact Resistant Nylon |
| Manfacturer Part No. | 8200 |
| Special Features | Back,Side Wire |
| Sales Unit | EA |
| Voltage | 125 V |
