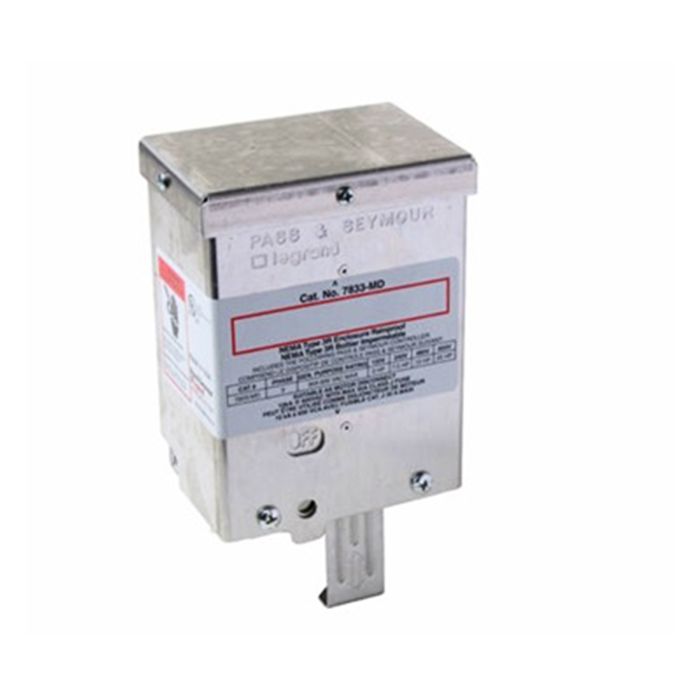

30A 600V 3-Pole 3-Phase AC Manual Motor Controller
$82.66
In stock
SKU
PAS7833MD
Three pole, Three Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.
Features & Benefits:
- High Horsepower rating of 20HP
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
- High Horsepower rating of 20HP
- Gull-wing shaped brass terminal pressure clamps
- Constructed of glass-reinforced thermoplastic
- UL508 and cULus Listing of individual device and assembled device within enclosure
- Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
- External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
| SKU | PAS7833MD |
|---|---|
| Amperage | 30A |
| Bestseller | No |
| Brand | Pass & Seymour |
| Certification | CSA and UL listed |
| Dimension Height | 5.75 in |
| Dimension Width | 4.50 in |
| Featured | No |
| Manfacturer Part No. | 7833MD |
| Sales Unit | EA |
| Voltage | 600 V |
| Wattage | 600 W |
