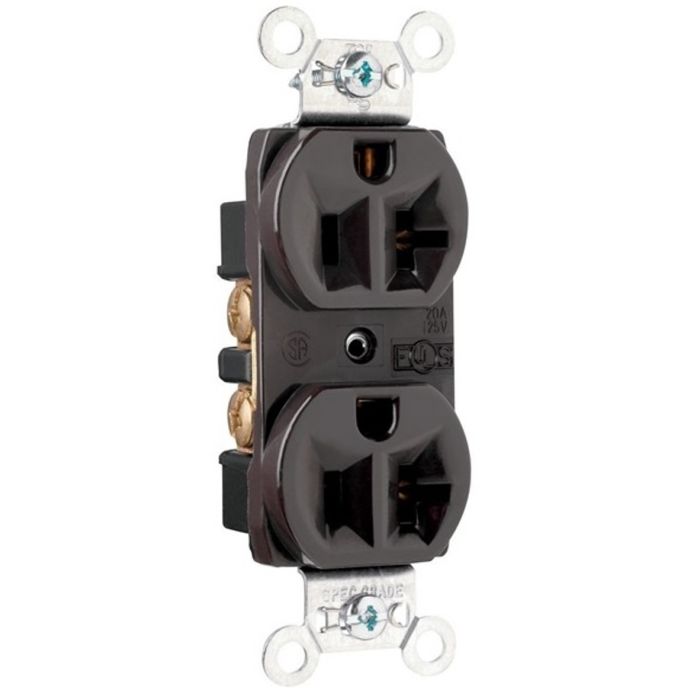

20A 125V Pass & Seymour® Hard Use Spec Grade Receptacle, Brown
$17.96
In stock
SKU
PAS5362
Legrand 20A 125V Pass & Seymour® Hard Use Spec Grade Receptacle, Brown
Hard Use Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Brown
Features and Benefits:
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground
Features and Benefits:
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground
| SKU | PAS5362 |
|---|---|
| Amperage | 20 A |
| Brand | Pass & Seymour |
| Certification | CSA certified, UL listed |
| Color | Brown |
| Dimension Height | 3.281 in |
| Dimension Width | 1.322 in |
| Material | Nylon |
| Manfacturer Part No. | 5362 |
| Special Features | Back, Side Wire |
| Sales Unit | EA |
| Voltage | 125V |
