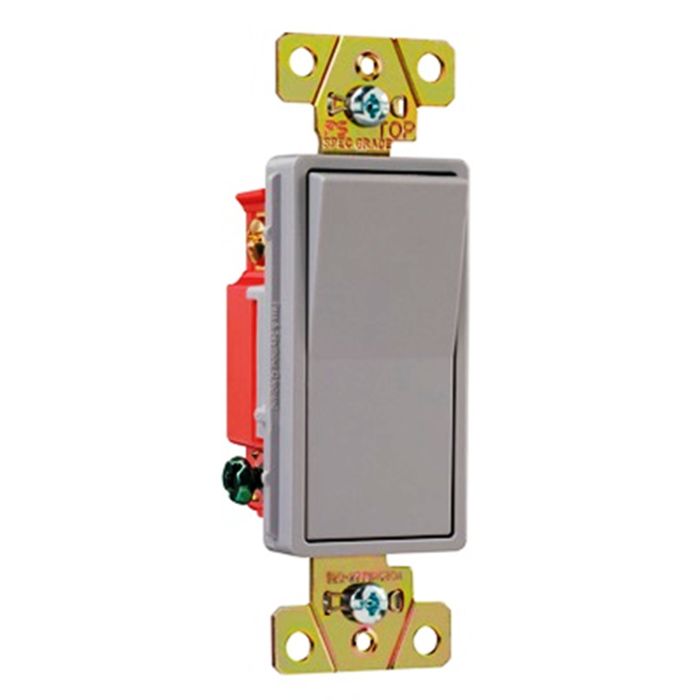

20A 125/277V Pass & Seymour® Specification Grade Decorator Switch, Gray
$39.41
In stock
SKU
PAS2623GRY
Decorator 3way Switch Back & Side Wire 20amp 120/277volt , Gray
Decorator 3way Switch Back & Side Wire 20amp 120/277volt Gray.
Features & Benefits:
- Impact-resistant polycarb back body and frame.
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
- Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
- Terminals made of high conductivity brass and serrated for maximum wire gripping.
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
- Integral auto-ground clip for positive ground to metal boxes.
- Tri-drive ground, terminal, and mounting screws.
- All terminal screws backed out, ready-to-install.
Features & Benefits:
- Impact-resistant polycarb back body and frame.
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
- Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
- Terminals made of high conductivity brass and serrated for maximum wire gripping.
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
- Integral auto-ground clip for positive ground to metal boxes.
- Tri-drive ground, terminal, and mounting screws.
- All terminal screws backed out, ready-to-install.
SKU | PAS2623GRY |
---|---|
Amperage | 20A |
Bestseller | No |
Brand | Pass & Seymour |
Certification | CSA certified, UL listed |
Color | Grey |
Dimension Height | 4.2 in |
Dimension Width | 1.3 in |
Featured | No |
Material | Polycarb frame |
Manfacturer Part No. | 2623GRY |
Poles | 3-way |
Sales Unit | EA |
Voltage | 120/277VAC |
YouTube Link | https://www.youtube.com/watch?v=LX4RBw7p4YE |
