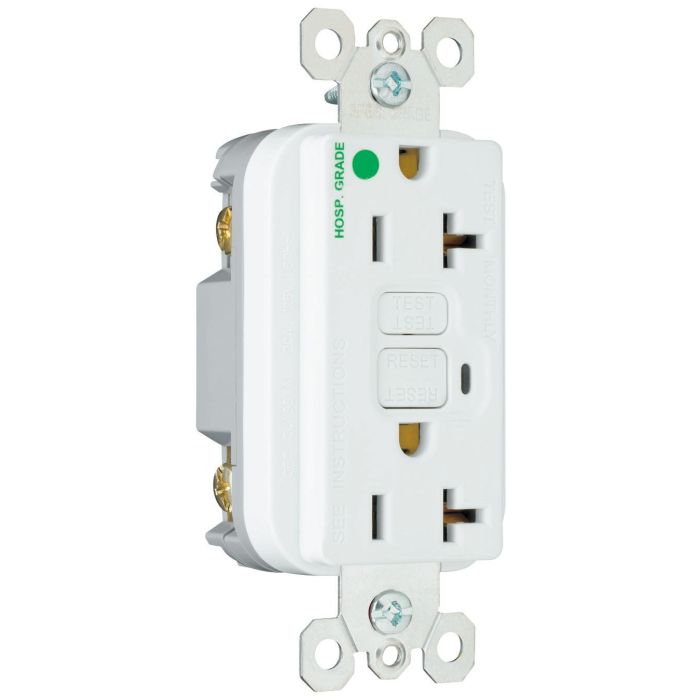

20A 125V Pass & Seymour® Hospital Grade Duplex GFCI, White
$40.75
In stock
SKU
PAS2095HGW
From the innovator of the product category, comes a full range of Pass & Seymour®GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite.
From the innovator of the product category, comes a full range of Pass & Seymour®GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our hospital-grade GFCI meet rigorous requirements of Hospital Grade supplement of UL498.
Features & Benefits:
- Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles. FSUL Listed (Federal Specification WC596). Trip indicator light (red LED).
- Side or internal screw-pressure-plate back wire with #10 – #14 AWG solid or stranded copper wire. Two back wire holes per terminal.
- 10kA SCCR, 20A/125VAC
- Ground screw has a back wire clamp for easy installation. 1/4" thinner than competitors’ GFCIs; leaves more room for wires in the box.
- Mounting screws are shipped captive in the device and wall plate for easier installation. - High-impact-resistant thermoplastic construction.
- Extra-long strap. Button colors match the device face. Dual-direction test and reset buttons. Class A rated GFCI. Supplied with matching TP26 nylon wall plate. Tri-drive screws.
- 10kA short circuit rating.
Features & Benefits:
- Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles. FSUL Listed (Federal Specification WC596). Trip indicator light (red LED).
- Side or internal screw-pressure-plate back wire with #10 – #14 AWG solid or stranded copper wire. Two back wire holes per terminal.
- 10kA SCCR, 20A/125VAC
- Ground screw has a back wire clamp for easy installation. 1/4" thinner than competitors’ GFCIs; leaves more room for wires in the box.
- Mounting screws are shipped captive in the device and wall plate for easier installation. - High-impact-resistant thermoplastic construction.
- Extra-long strap. Button colors match the device face. Dual-direction test and reset buttons. Class A rated GFCI. Supplied with matching TP26 nylon wall plate. Tri-drive screws.
- 10kA short circuit rating.
| SKU | PAS2095HGW |
|---|---|
| Amperage | 20A |
| Bestseller | No |
| Brand | Pass & Seymour |
| Certification | cULus listed, UL listed, UN SPS C: 39121614 |
| Color | White |
| Dimension Height | 4.20" |
| Dimension Width | 1.72" |
| Featured | No |
| Manfacturer Part No. | 2095HGW |
| Sales Unit | EA |
| Voltage | 125 V |
| YouTube Link | https://www.youtube.com/watch?v=wWKZUjGeZcA |
