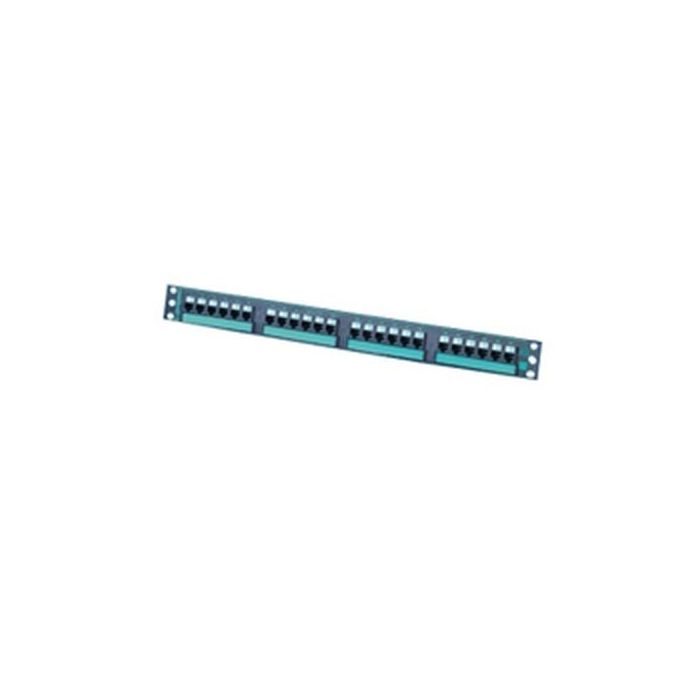

19"x1.75" Legrand Ortronics® Clarity Cat5E 24-Port Panel, Cat5e 6-Port Module

Clarity 5E 24-Port High Density Patch Panel is component compliant to EIA/TIA Category 5e performance requirements. It occupies one rack unit and measures 19" x 1.75". Jacks are grouped in six-port modules. Part of the Clarity 5E link and channel solution that provides significant installed performance headroom.

Features & Benefits:

• ETL verified to TIA Category 5e component spec: Elevated component performance.
• Center tuned to Clarity 5E patch cords: More transparent mated union.
• Universal wiring: Supports T568A and T568B installs.
• Easy lace 110 termination: Saves installation time.
• Supplied rear cable management: Supports good cabling practice.
• High density design: Maximizes rack utilization.
• RoHS compliant: Lead free.

Mod Jack Wiring: Universal T568A/B
Number Of Ports: 24
Performance Category: Cat 5e component compliant
Product Series: Clarity
Type: Patch Panels

Component: Panel
Component: Six-port jack housing
Component: Six-port rear IDC housing
Component: Array of eight modular dual reactance contacts
Component: IDC contacts (low noise)
Finish Plating1: Painted black - texture with green silkscreen
Finish Plating4: Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
Finish Plating5: Nickel plating with tin over plate
Material: .094" Aluminum
Material: High impact thermoplastic UL 94V-0
Material: Polycarbonate
Material: Beryllium copper
Material: Phosphor Bronze
