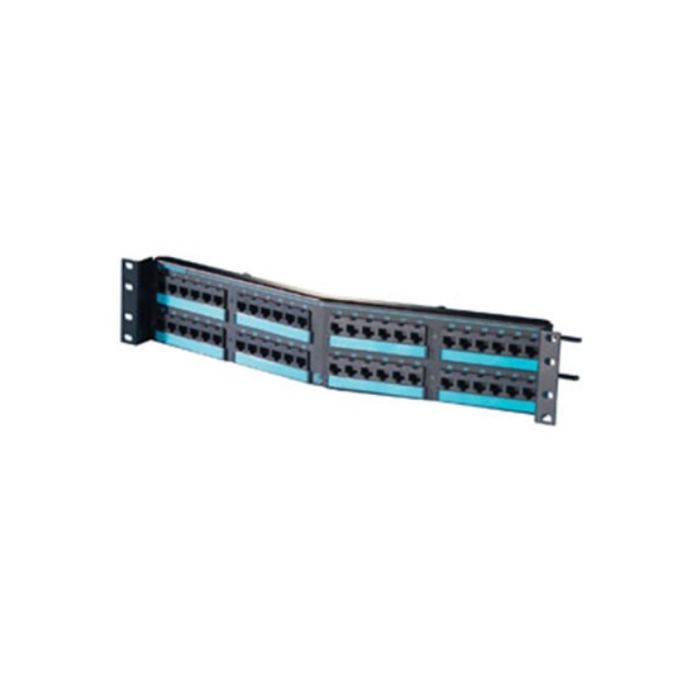

19"x3.5" Legrand Ortronics® Clarity 6 Angled 48-Port Cat6 Patch Panel 6-Port Module, Black

Clarity 6 angled 48-port high density Category 6 patch panel utilizes an innovative recessed angle design for a lower mounted profile. This Clarity 6 patch panel is component compliant to TIA/EIA Category 6 performance requirements. It occupies one rack unit, and measures 19" x 3.5". Jacks are grouped in six-port modules. It is part of the Clarity 6 link and channel solution that provides significant installed performance headroom.

Features & Benefits:
• Recessed design with lower mounted profile: Directs cords more easily to vertical management.
• ETL verified to TIA Category 6 component spec: Elevated component performance.
• Center tuned to Clarity 6 patch cords: More transparent mated union.
• Universal wiring: Supports T568A and T568B installs.
• Easy lace 110 termination: Saves installation time.
• Supplied rear cable management: Supports good cabling practice.
• High density design: Maximizes rack utilization.
• RoHS compliant: Lead free.

Mod Jack Wiring: Universal T568A/B
Number Of Ports: 48
Performance Category: Cat 6 component compliant
Product Series: Clarity
Type: Patch Panels


Component: Panel
Component: Six-port jack housing
Component: Six-port rear IDC housing
Component: Array of eight modular dual reactance Cat6 contacts
Component: IDC contacts (low noise)
Finish Plating1: Painted black - texture with blue silkscreen
Finish Plating4: Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
Finish Plating5: Nickel plating with tin over plate
Material: .090" Aluminum
Material: High impact thermoplastic UL 94V-0
Material: Polycarbonate
Material: Beryllium Copper
Material: Phosphor Bronze
