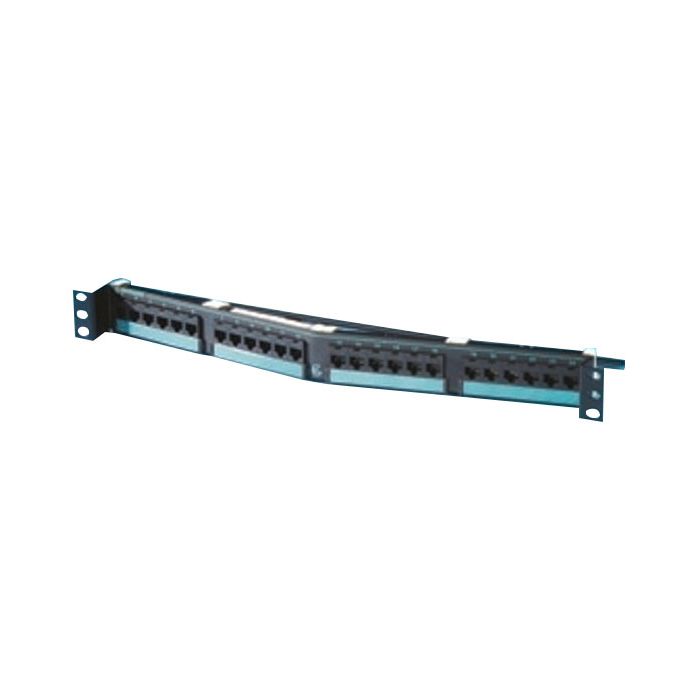

24 Port 6 Patch Panel 6-Port Module Legrand Ortronics® High Density Clarity Angled Category

Clarity 6 angled 24-port Category 6 patch panel, high density patch panel is component compliant to TIA/EIA Category 6 performance requirements. White panel occupies 1 rack unit and measures 19" x 1.75". Jacks are grouped in six-port modules. It is part of the Clarity 6 link and channel solution that provides significant installed performance headroom.

Features & Benefits:

• Recessed design with lower mounted profile
• ETL verified to TIA Category 6 component spec
• Center tuned to Clarity6 patch cords
• Universally wired 110 termination
• New IDC housing
• Supplied rear cable management
• High density design
• RoHS compliant

Mod Jack Wiring: Universal T568A/B
Number Of Ports: 24
UL Standards Tested: UL1863
Product Series: Clarity
Type: Patch Panels

Component: Panel
Component: Six-port jack housing
Component: Six-port rear IDC housing
Component: Array of eight modular dual reactance Cat6 contacts
Component: IDC contacts (low noise)
Finish Plating1: Painted white with white/ blue overlay
Finish Plating4: Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
Finish Plating5: Nickel plating with tin over plate
Material: .090" Steel
Material: High impact thermoplastic UL 94V-0
Material: Polycarbonate
Material: Beryllium Copper
Material: Phosphor Bronze
