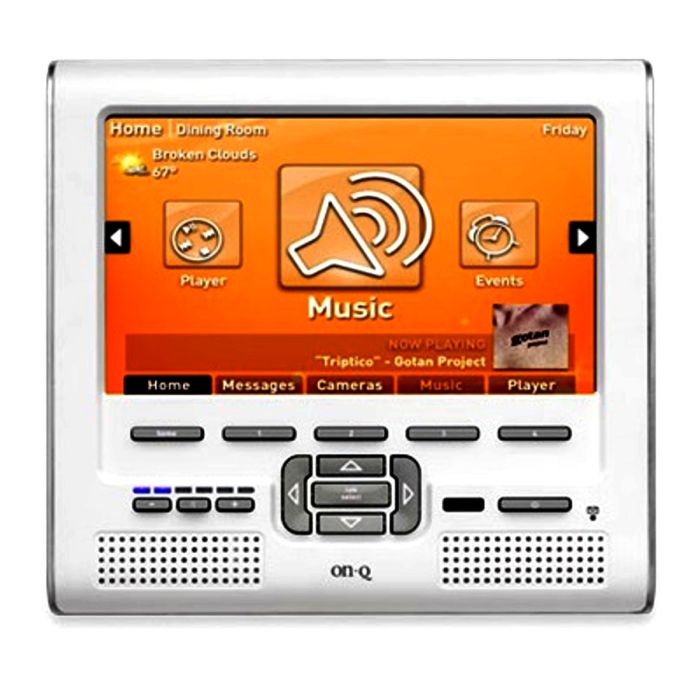

7" Legrand On-Q® LCD Console with High-Performance lyriQ, White

This 7" LCD Console features a simple graphic user interface that allows control of camera, multi-room audio, intercom, lighting and messaging functions when coupled with the Integration Module of the Unity Home System. The console mounts in a standard triple gang box and installs easily via Cat 5 wiring with convenient RJ45 connections.

This LCD features addtional connections for High-Performance lyriQ that turn it into a volume control when used as part of the Unity Home System.

Features & Benefits:

- Mounts in a standard triple gang box and installs easily via Cat 5 wiring with convenient RJ45 connections.
- 7" LCD screen with a simple push button interface to select desired input.
- Controllable through an On-Q IR remote control.
- Attractive design complements the home and matches other On-Q devices in the Studio design.
- Up to four video feeds available with on-board sequencing of camera images.
- Additional connections for High-Performance lyriQ to turn screen into volume control.
- Integration module required.

Pinning: LCD Out
1. Left Audio (PreGND) Audio Pre-Ground
2. Left Audio Input Audio Signal (line level analog)
3. Right Audio (PreGND) Audio Pre-Ground
4. IR (IR TX) Output IR Command (analog 12V max signal)
5. Status (IR RX) Input IR Command (analog 12V max signal)
6. Right Audio Input Audio Signal (line level analog)
7. Ground Power Ground
8. Power (+24VDC) +24Vdc Power Input
lyriQ Out
1. Left Audio (PreGND) Audio Pre-Ground
2. Left Audio Input Audio Signal (line level analog)
3. Right Audio (PreGND) Audio Pre-Ground
4. IR (IR TX) Output IR Command (analog 12V max signal)
5. Status (IR RX) Input IR Command (analog 12V max signal)
6. Right Audio Input Audio Signal (line level analog)
7. Ground Power Ground
8. Power (+24VDC) +24Vdc Power Input
