Legrand On-Q® LCD Console
$716.85
In stock
SKU
ONQHA5000WH

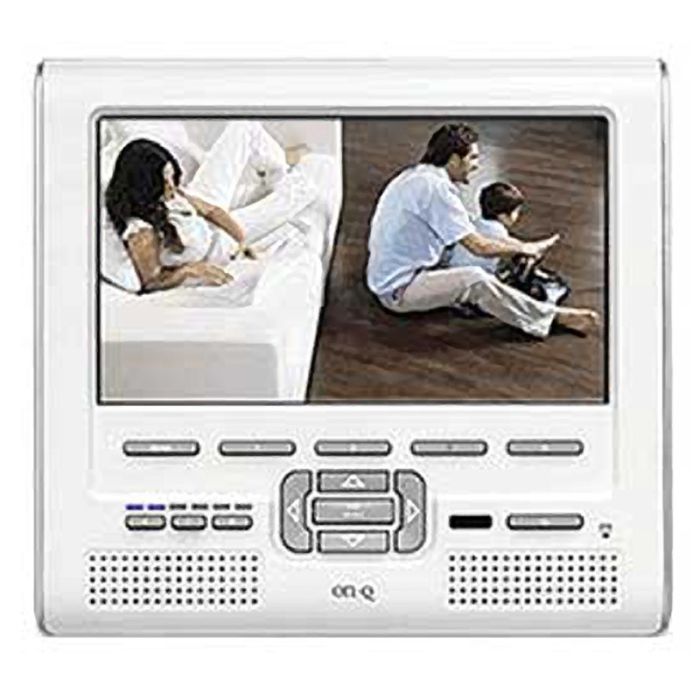

The 7" LCD Console features a simple graphic user interface that allows control of camera, multi-room audio, intercom and messaging functions as part of the Unity Home System.
The 7" LCD Console features a simple graphic user interface that allows control of camera, multi-room audio, intercom and messaging functions as part of the Unity Home System. As part of an On-Q Camera System it allows viewing of up to four camera feeds. The console mounts in a standard triple gang box and installs easily via Cat 5 wiring with convenient RJ45 connections. The LCD Console is available in four attractive Studio colors.
Technical Information:
- Cat5 Cable Rating: Cat 5e UTP, 4 Pair Solid Conductor (24 AWG)
- Connection Method: Single RJ45
- Contrast Ratio: 300:1
- IR Range On Axis: 25ft Max
- IR Receive Frequency: 10kHz - 110kHz
- Material: ABS Plastic
- Mounting: Standard NEMA 3 Gang Wall Box
- Operating Temperature Celsius: 0 to 55ºC
- Power Requirements: +24 Vdc, +/-1.5 Vdc, 0.75 A max (via CM1010 LCD Module)
- Storage Temperature: -55 to 75 Degrees Celsius
Technical Information:
- Cat5 Cable Rating: Cat 5e UTP, 4 Pair Solid Conductor (24 AWG)
- Connection Method: Single RJ45
- Contrast Ratio: 300:1
- IR Range On Axis: 25ft Max
- IR Receive Frequency: 10kHz - 110kHz
- Material: ABS Plastic
- Mounting: Standard NEMA 3 Gang Wall Box
- Operating Temperature Celsius: 0 to 55ºC
- Power Requirements: +24 Vdc, +/-1.5 Vdc, 0.75 A max (via CM1010 LCD Module)
- Storage Temperature: -55 to 75 Degrees Celsius
| SKU | ONQHA5000WH |
|---|---|
| Bestseller | No |
| Brand | On-Q |
| Color | White |
| Dimension Height | 7.0 in |
| Dimension Width | 7.25 in |
| Featured | No |
| Installation | Mounting: Standard NEMA 3 Gang Wall Box |
| Material | ABS Plastic |
| Manfacturer Part No. | HA5000-WH |
| Special Features |
|
| Sales Unit | EA |
