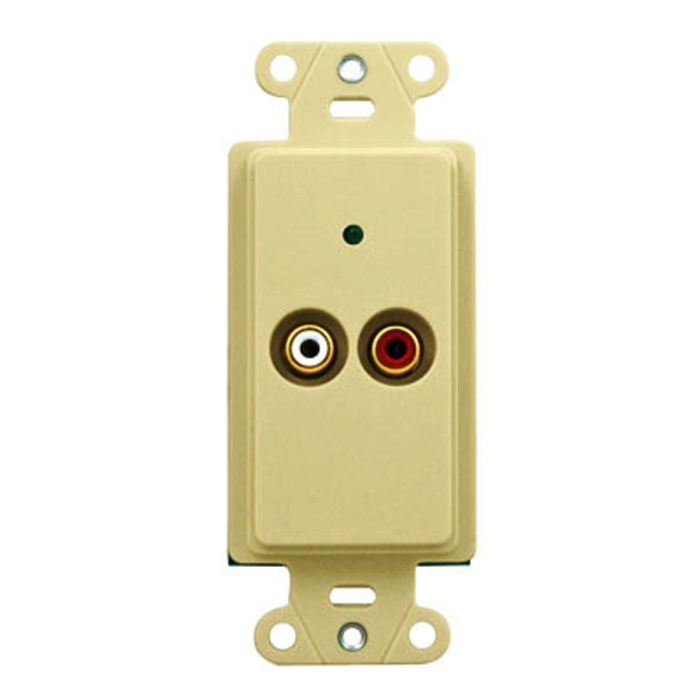

Legrand On-Q® lyriQ Local Source Input, Light Almond

Allows user to plug in devices like portable audio players, master bedroom TVs, or computer audio outputs for in-room listening on local speakers. Automatically overrides the remote source music in the room when the local source is on and returns to source when local source is off.

Features & Benefits:

- Automatically overrides the remote source
- For use with the lyriQ Audio System
- Material: ABS
- Mounting: Wall
- Receptacle Type: RCA Female
- Number of Receptacles: 2

Cord Information:
Connector Type ( End One): Gold-plated RCA Jack
Connector Type ( End Two): RJ45 Female
Pinning:
1. Green/White L- (PreGND)
2. Green L+
3. Orange/White Audio R- (PreGND)
4. Blue IR_IN (IR TX)
5. Blue/White Status_Out (IR RX)
6. Orange Audio R+
7. Brown/White Ground
8. Brown Power (+24 Vdc)
