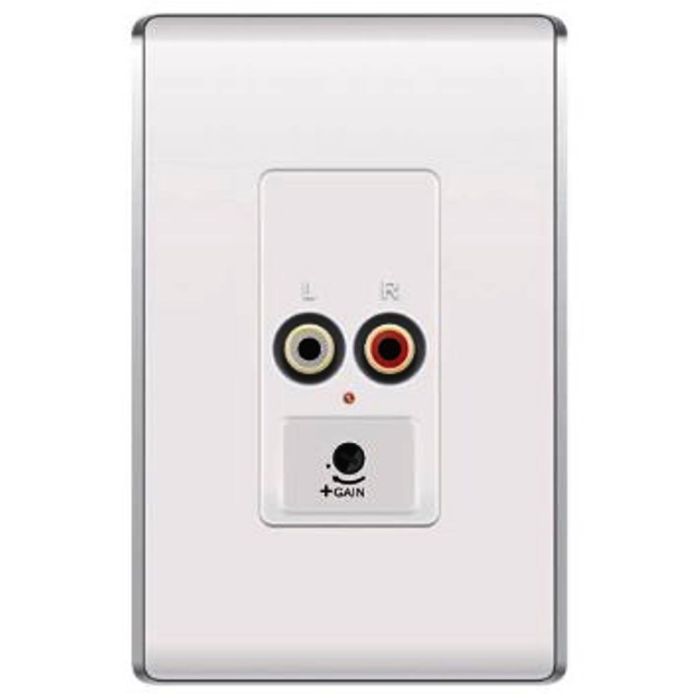

Legrand On-Q® lyriQ Local Source Input in Studio Design, White
$140.39
In stock
SKU
ONQAU5008WH
The lyriQ Local Source Input enables users to plug in devices like personal audio players locally for in-room entertainment.
The lyriQ Local Source Input enables users to plug in devices like personal audio players locally for in-room entertainment. It automatically overrides the remote source music in the room and returns to the main source when the local source is turned off. It also includes a convenient RJ45 connection and adjustable gain control. Up to two local source inputs can be installed per zone, and it can be selected from the keypad or the On-Q remote.
Technical Information:
- Frequency Response: 20 - 100 Hz ± 4 dB 100 - 20,000 Hz ± 2 dB
- Humidity: Up to 90% RH (non-condensing)
- IR Receive Frequency: 10 KHz ± 5 KHz to 110 KHz ± 5 KHz
- Operating Temperature Celsius: 0 to 55ºC
- Output And Line Out Connection: Audio Out: RJ45 Connection
- Power Requirements: +24Vdc supplied by the Distribution Module
- Storage Temperature: -25 to +75 Degrees Celsius
Technical Information:
- Frequency Response: 20 - 100 Hz ± 4 dB 100 - 20,000 Hz ± 2 dB
- Humidity: Up to 90% RH (non-condensing)
- IR Receive Frequency: 10 KHz ± 5 KHz to 110 KHz ± 5 KHz
- Operating Temperature Celsius: 0 to 55ºC
- Output And Line Out Connection: Audio Out: RJ45 Connection
- Power Requirements: +24Vdc supplied by the Distribution Module
- Storage Temperature: -25 to +75 Degrees Celsius
| SKU | ONQAU5008WH |
|---|---|
| Bestseller | No |
| Brand | On-Q |
| Color | White |
| Dimension Height | 4.91 in |
| Dimension Width | 1.65 in |
| Featured | No |
| Installation | Installation Location: In-Wall |
| Manfacturer Part No. | AU5008-WH |
| Sales Unit | EA |
