Legrand On-Q® lyriQ Four-Source, Eight Zone Distribution Module
$383.94
In stock
SKU
ONQAU1002
Distributes four audio sources to eight different locations.

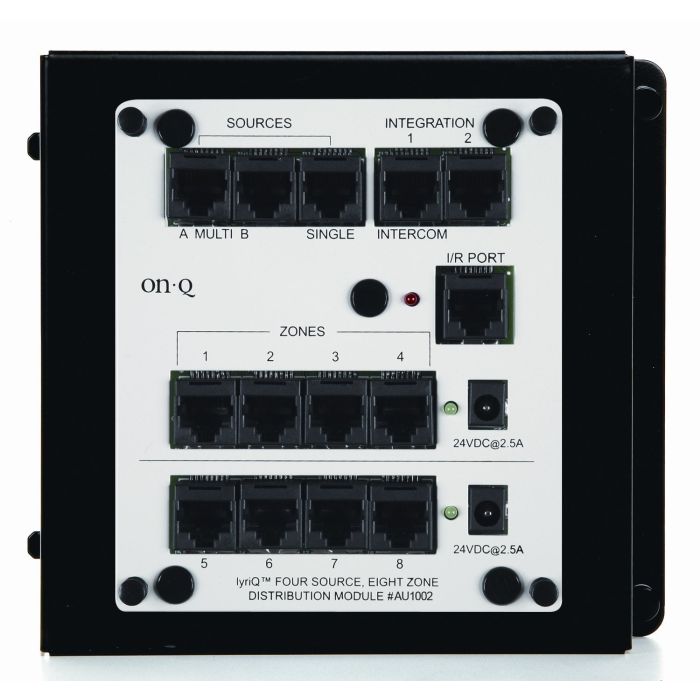

Distributes four audio sources to eight different locations. The lyriQ Four Source, Eight-Zone Distribution Module and Triple Source Input retrofit with existing lyriQ Audio components to expand a single source system into a multi-source system. Homeowners can choose the room and the audio source connected to what they want to hear — digital music, a CD, XM Satellite Radio and the tuner or stereo.
Technical Information:
- Amps: 2.5A
- Compatible Power Supplies: 24V, 2.5A PW1060 (1 or 2 required, not included)
- Material: 18 Guage Cold Rolled Steel
- Mounting: Enclosure
- Volts D C: 24VDC
- Receptacle Type: RJ45
- Number of Receptacles: 14 (use varies by configuration)
Technical Information:
- Amps: 2.5A
- Compatible Power Supplies: 24V, 2.5A PW1060 (1 or 2 required, not included)
- Material: 18 Guage Cold Rolled Steel
- Mounting: Enclosure
- Volts D C: 24VDC
- Receptacle Type: RJ45
- Number of Receptacles: 14 (use varies by configuration)
| SKU | ONQAU1002 |
|---|---|
| Amperage | 2.5 A |
| Application | For use with the lyriQ Audio System |
| Brand | On-Q |
| Certification | UN SPS C: 45111801 |
| Color | Grey |
| Installation | Mounting Hardware Included: Mounting Plate and other hardware included |
| Material | 18 Gauge Cold Rolled Steel |
| Manfacturer Part No. | AU1002 |
| Sales Unit | EA |
| Voltage | 24VDC |
| YouTube Link | https://www.youtube.com/watch?v=2bLJNb7olV8 |
