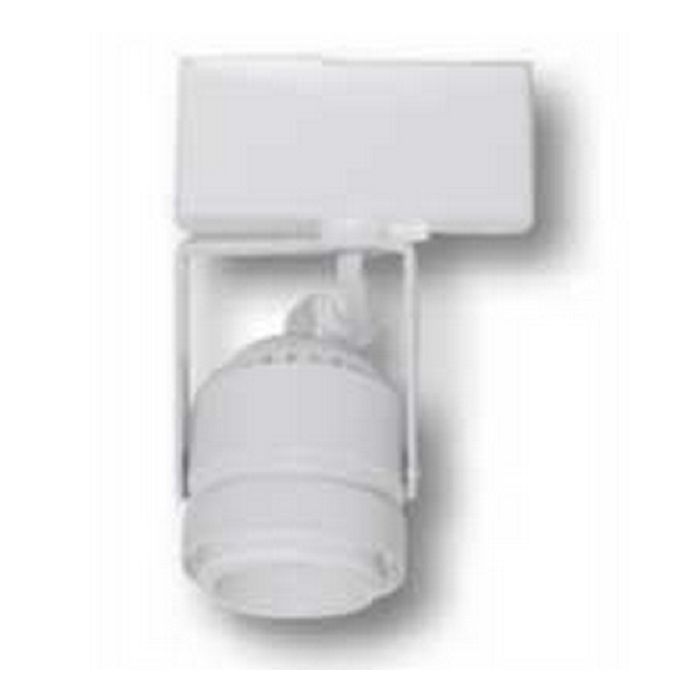

50W 12V Philips Lightolier® Lytespan® MR16 Low Voltage Domelite, White

This track head is available in kits, including one 40" track, two spots and a floating canopy; or as a single spot.

Features
• Trunion Mounting: Permanently tensioned with internal spring wasker and vibration-resistant unit. Vertical adjustment 0-180°
• Pivot Mounting: Permanently tensioned. Adjust horizontally with 350° stop
• Classics are constructed of durable steel with black phenolic baffles to reduce glare

Features Mounting
• Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitter twists onto track, lock on with push tab.
• Push Tab: Molded polycarbonate. Detaches unit. Polarity Keyway.
• Converter Housing: Molded polycarbonate. Integral color.
• Converter: Low voltage 120V/12V electronic. 18AWG, SEW-1. Use a conventional dimmers.
• Note: electronic converters may become audible when used with wall dimmers.
• Pivot Mounting: Permanently tensioned. Adjust horizontally with 350º stop. Yoke: 0.075" (1.90mm) steel.
• Trunion Mounting: Permanently tensioned with internal spring wasker and vibration-resistant unit. Vertical adjustment 0-180º.
• Lamp Shield: 0.020" (0.51mm) steel.
• Lampholder: Miniature bi-pin, GX5, 3 base, nickel contacts. 18AWG, AWM.
• Housing: 0.016" (0.41mm) steel.
• Protective Glass: Clear borosilicate, filters out U.V. radiation and lamp rupture as required by CSA.
• Protective Glass: Clear borosilicate, filters out U.V. radiation and lamp rupture as required by CSA.

Finish:
All painted finishes are baked powder or enamel.

Marking:
CSA Cerified, suitable for dry locations only.
