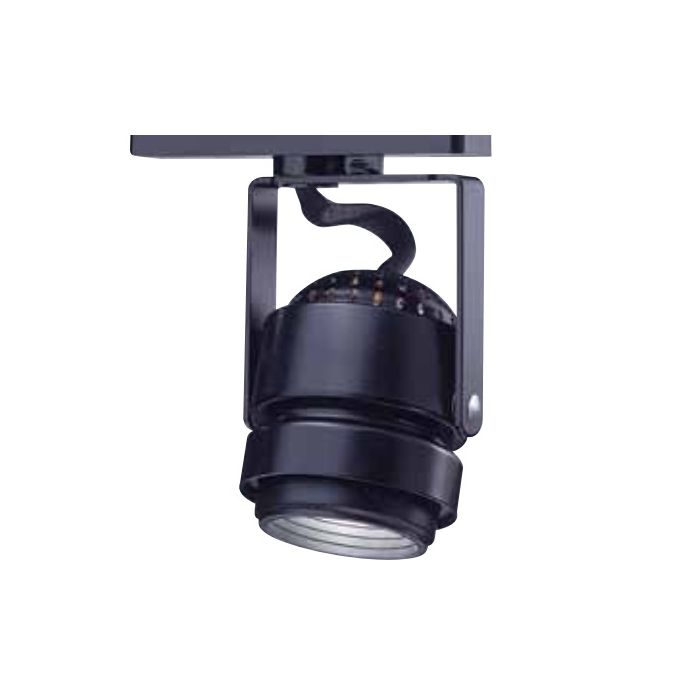

50W 12V Philips Lightolier® Lytespan® MR16 Low Voltage Domelite, Black

Features
Lytespan Attachment Fitting:
• Molded polycarbonate. Integral color.
• Fitter twists onto track, lock on with push tab.

Push Tab:
• Molded polycarbonate. Detaches unit.
• Polarity Keyway.

Converter Housing:
• Molded polycarbonate.
• Integral color.

Converter:
• Low voltage 120V/12V electronic.
• 18AWG, SEW-1.

Use a conventional dimmers. Note: electronic converters may become audible when used with wall dimmers. Pivot Mounting: Permanently tensioned. Adjust horizontally
with 350º stop.

• Yoke: 0.075" (1.90mm) steel.
• Trunion Mounting: Permanently tensioned with internal spring wasker and vibration-resistant unit. Vertical adjustment 0-180º.
• Lamp Shield: 0.020" (0.51mm) steel.
• Lampholder: Miniature bi-pin, GX5, 3 base, nickel contacts. 18AWG, AWM.
• Housing: 0.016" (0.41mm) steel.
• Protective Glass: Clear borosilicate, filters out U.V. radiation and lamp rupture as required by CSA.

Finish
All painted finishes are baked powder or enamel.

Marking
CSA Cerified, suitable for dry locations only.

Mounting
All Basic (single circuit) track systems only

Accessory
AF2 / ADF2 Series ; 2" dia. Filters and Lenses ; Max. of one accessory. 7472 ; Hex cell louver
