50W 12V Lytespan® Low Voltage Barelite MR16 Electronic Transformer, White
$83.16
In stock
SKU
LCL850WH

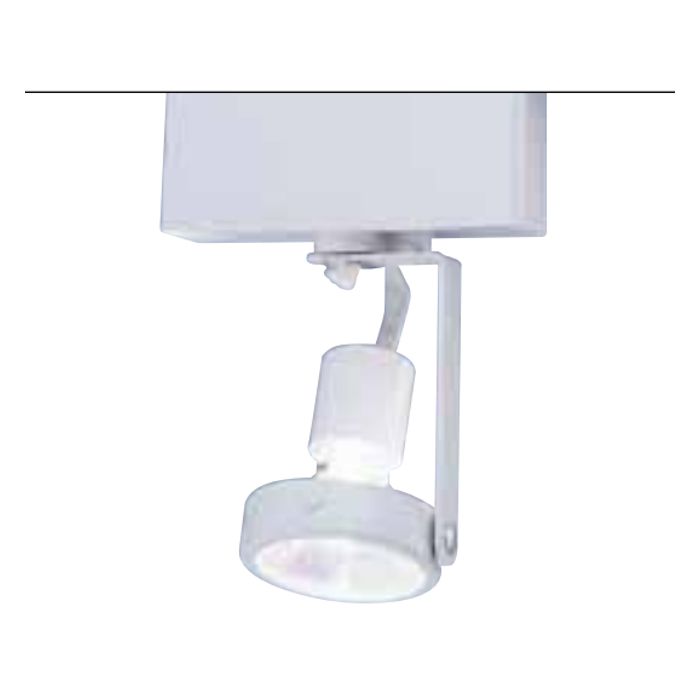

This track head is available in kits, including one 40" track, two spots and a floating canopy; or as a single spot.
Features:
• Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitter twists onto track, lock on with push tab.
• Push Tab: Molded polycarbonate. Detaches unit.
• Polarity Keyway.
• Converter Housing: Molded polycarbonate. Integral color.
• Converter: Low voltage 120V/12V electronic. 18AWG, SEW-1. Use a conventional dimmers. Note: electronic converters may
become audible when used with wall dimmers.
Pivot Mounting: Permanently tensioned. Adjust horizontally
with 350º stop.
Yoke: 0.075" (1.90mm) steel.
Pivot Mounting: Tensioned with integral spring washer. Adjusts
vertically up to 180º.
Lamp Shield: 0.020" (0.51mm) steel.
• Lampholder: Miniature bi-pin, GX5, 3 base, nickel contacts. 18AWG, AWM.
• Housing: 0.016" (0.41mm) steel.
• Protective Glass: Clear borosilicate, filters out U.V. radiation and lamp rupture as required by CSA.
• Protective Glass: Clear borosilicate, filters out U.V. radiation and lamp rupture as required by CSA.
Finish:
All painted finishes are baked powder or enamel.
• Lytespan Attachment Fitting: Molded polycarbonate. Integral color. Fitter twists onto track, lock on with push tab.
• Push Tab: Molded polycarbonate. Detaches unit.
• Polarity Keyway.
• Converter Housing: Molded polycarbonate. Integral color.
• Converter: Low voltage 120V/12V electronic. 18AWG, SEW-1. Use a conventional dimmers. Note: electronic converters may
become audible when used with wall dimmers.
Pivot Mounting: Permanently tensioned. Adjust horizontally
with 350º stop.
Yoke: 0.075" (1.90mm) steel.
Pivot Mounting: Tensioned with integral spring washer. Adjusts
vertically up to 180º.
Lamp Shield: 0.020" (0.51mm) steel.
• Lampholder: Miniature bi-pin, GX5, 3 base, nickel contacts. 18AWG, AWM.
• Housing: 0.016" (0.41mm) steel.
• Protective Glass: Clear borosilicate, filters out U.V. radiation and lamp rupture as required by CSA.
• Protective Glass: Clear borosilicate, filters out U.V. radiation and lamp rupture as required by CSA.
Finish:
All painted finishes are baked powder or enamel.
| SKU | LCL850WH |
|---|---|
| Application | Low Voltage Track Fixture |
| Bestseller | No |
| Brand | Lightolier |
| Certification | CSA certified |
| Color | White |
| Dimension Diameter | 2.20" |
| Dimension Height | 5.236" |
| Dimension Width | 3.857 Inch |
| Featured | No |
| Material | Polycarbonate |
| Manfacturer Part No. | 850WH |
| Sales Unit | EA |
| Voltage | 12V |
