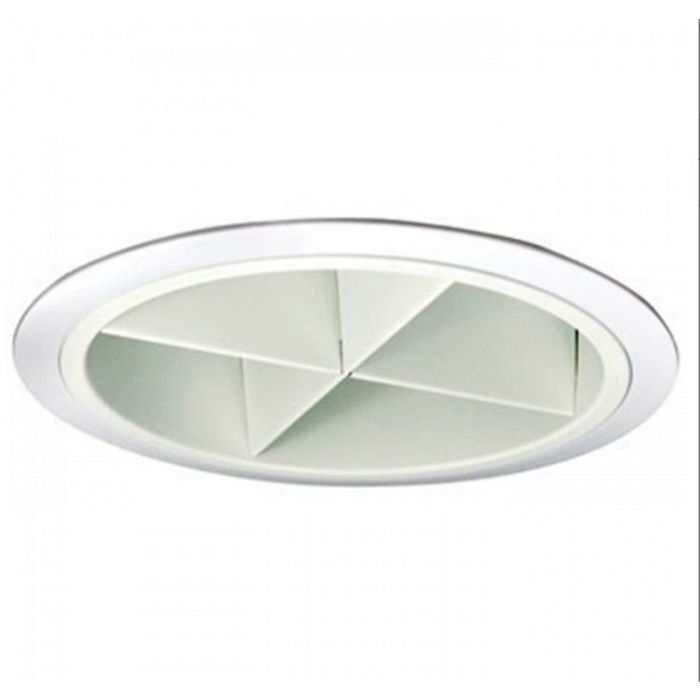

6" Calculite® Aperture Triple Tube Cross Blade Louver Reflector Trim, White Cone/White Flange

Features:

1. Reflector: 16 ga. Die-formed aluminum, Anobrite® finish.
2. Socket Cup: Effectively dissipates heat and positions lamp holder.
Snaps onto reflector neck to assure consistently correct optical alignment
without tools.
3. Mounting Frame: Galvanized steel for dry or plaster ceilings. Accepts other
6” Triple Tube reflectors (see S6132BU Spec Sheet).
4. Retaining Springs: Precision-tooled steel friction springs secure reflector to
mounting frame for quick, tool-less installation.
5. Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or
1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
6. Ballast/J-Box: Electronic 120V-277V. UL listed for through branch circuit
wiring with max of (8) No. 12AWG, 90°c supply conductors. Outboardmounted
to reduce heat transfer and maintain lamp efficacy and life.
Service from below without tools.
7. Cross Blade Louver: Die-formed, 16 ga. aluminum, matte white or painted
aluminum finish. Accepts lens (consult factory). 50° cutoff to lamp, medium
beam. Keyed for orientation.
