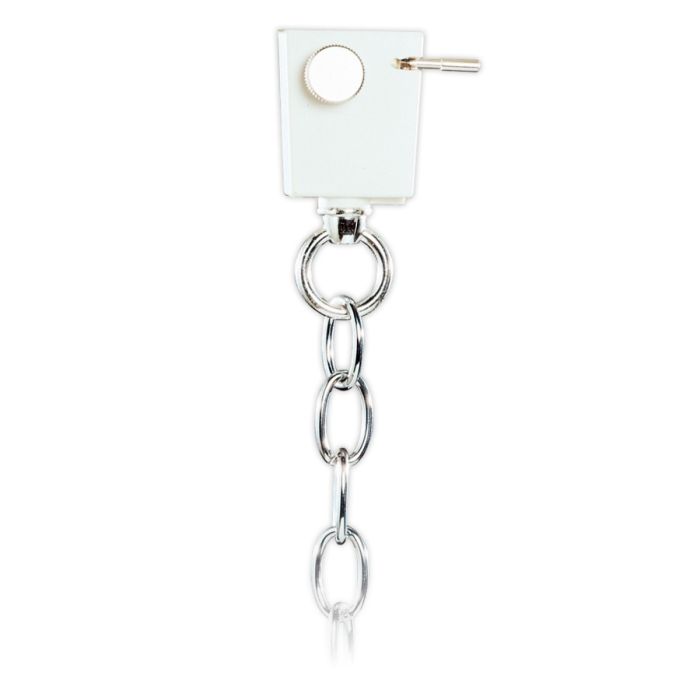

Lytespan® Track/Attacment Fitting, White

Features
• Housing: Molded polycarbonate .075" wall thickness; integral matte white finish.
• Movable Brass Contact: Extends for connection to 2nd circuit in Advent Lytespan Track.
• Expansion Clamp: Fingertip squeeze-release for quick attachment; thumbscrew lock for rigid mounting.
• Screw Terminals: Connect onto individual conductors.
• Strain Relief Cap: Molded thermoplastic. Use with pendant cord.
• Fixture Cord, Stem or Chain: note: Cord max dia. .340" (not supplied). Stem size: 1/2" O.D., .065" wall, 1/4"-18 thread 1/2" long (not supplied). Chain: 1/4"-18 loop (not supplied).
• 1/4"-18 Knurled Ring.
• 1/4"-20 Set Screw: Nylon. Secures fixture cord, stem or chain loop.
• 1/4"-18 Nipple
• Electrical Contacts: move in conjunction with lever.
• Max. Wire Ga.: #18
• Lever: energizes attachment fitting.
• Polarity Keyway
