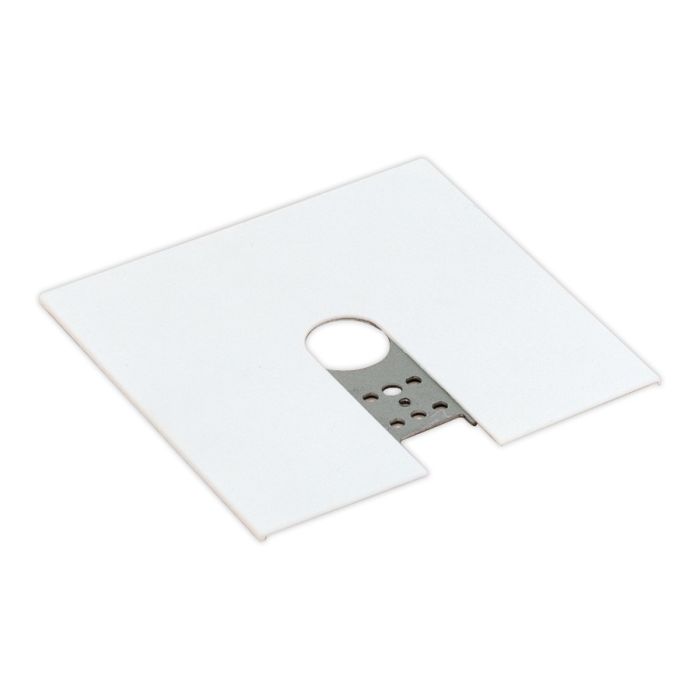

Philips Lightolier® Lytespan® Floating Canopy Kit, White

Features

Basic Lytespan is a one circuit electrical distribution system designed to support
and supply all Lytespan lighting units in a flexible manner. The track can be
installed individually in straight runs or in a variety of patterns.

1. Basic Lytespan Track: 6063-T5 structural aluminum extrusion.
2. Track Mounting Clips: 0.024 Spring steel, in black or white; order separately.
3. Toggle Bolt & Screws: furnished with track units.
4. Conductor (2): copper 12 ga. equivalent. “U” shape provides reliable contact
with connectors.
5. Insulating Liner: 0.032" wall, high temperature thermoplastic.
6. Polarity Bead: identifies the neutral conductor.
7. Live End: molded thermoplastic. Contains contacts for power supply leads.
8. Dead End Cover: molded thermoplastic.
9. Mini Coupler: connects track units mechanically and electrically.

Mounting
The track may be surface or stem mounted (see pages 2, 3, and 4) or installed in
a recessed housing (see Specification sheet 7515). The track is not intended to
be cable mounted. All lengths can be field cut.

Finish
All painted finishes are baked enamel.
