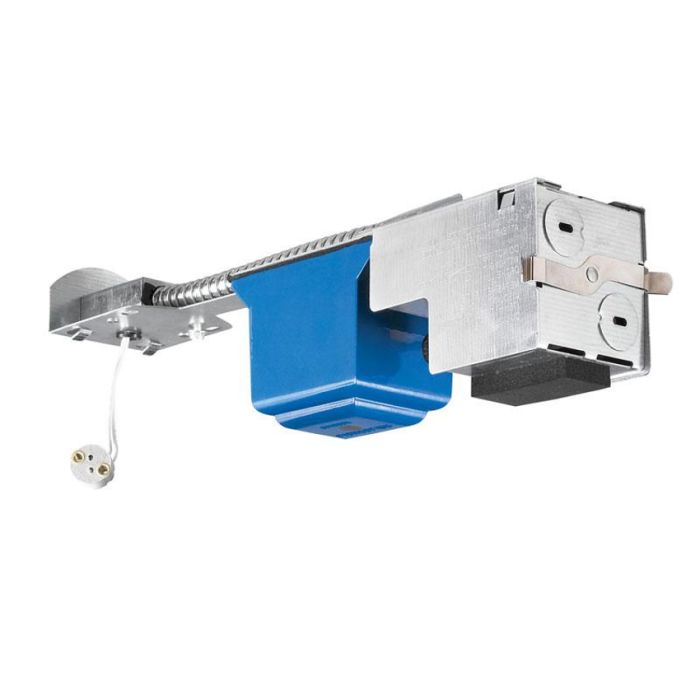

3-3/4" Lytepoints Remodeler MR16 Silent Pack
$54.94
In stock
SKU
LCL300MRSPX
SP 12V MAG MR16 REMODEL
Features
• Channel: Ideal for retrofit installation. Bends at the thinner section to ease installation. Permits wiring from below the ceiling.
• Socket: Porcelain body. Two-pin (GX5.3 base). Pre-wired with 18 ga. Teflon 250º leads to junction box.
• Thermal Protector: Meets CSA/UL requirements. Insulation, if used, must be kept 3" (76mm) away from luminaire sides and junction box.
• Potted Transformer: 50VA Magnetic, 120 volts primary, nominal 12 volt secondary, class "H". Can be removed easily. Fully encapsulated in epoxy resin inside aluminum casing.
• Junction Box: 3-1/2 po (89mm) x 2-1/2 po (64mm) x 2 po (51mm) satin coated steel 20 ga. CSA certified for maximum of 4 No. 12 ga., 90°C through branch wiring. With two (2) 7/8" (22mm) integral pryouts. Easy access from both sides with two hinged junction box covers held in closed position with snap-on spring.
• BX Cable: Bends down to make easier the installation.
• Sound insulation gasket, absords part of the vibrations.
• Channel: Ideal for retrofit installation. Bends at the thinner section to ease installation. Permits wiring from below the ceiling.
• Socket: Porcelain body. Two-pin (GX5.3 base). Pre-wired with 18 ga. Teflon 250º leads to junction box.
• Thermal Protector: Meets CSA/UL requirements. Insulation, if used, must be kept 3" (76mm) away from luminaire sides and junction box.
• Potted Transformer: 50VA Magnetic, 120 volts primary, nominal 12 volt secondary, class "H". Can be removed easily. Fully encapsulated in epoxy resin inside aluminum casing.
• Junction Box: 3-1/2 po (89mm) x 2-1/2 po (64mm) x 2 po (51mm) satin coated steel 20 ga. CSA certified for maximum of 4 No. 12 ga., 90°C through branch wiring. With two (2) 7/8" (22mm) integral pryouts. Easy access from both sides with two hinged junction box covers held in closed position with snap-on spring.
• BX Cable: Bends down to make easier the installation.
• Sound insulation gasket, absords part of the vibrations.
| SKU | LCL300MRSPX |
|---|---|
| Bestseller | No |
| Brand | Philips Lightolier |
| Dimension Length | 12 5/8 Inch |
| Dimension Width | 3-3/8 Inch |
| Featured | No |
| Manfacturer Part No. | 300MRSPX |
| Sales Unit | EA |
