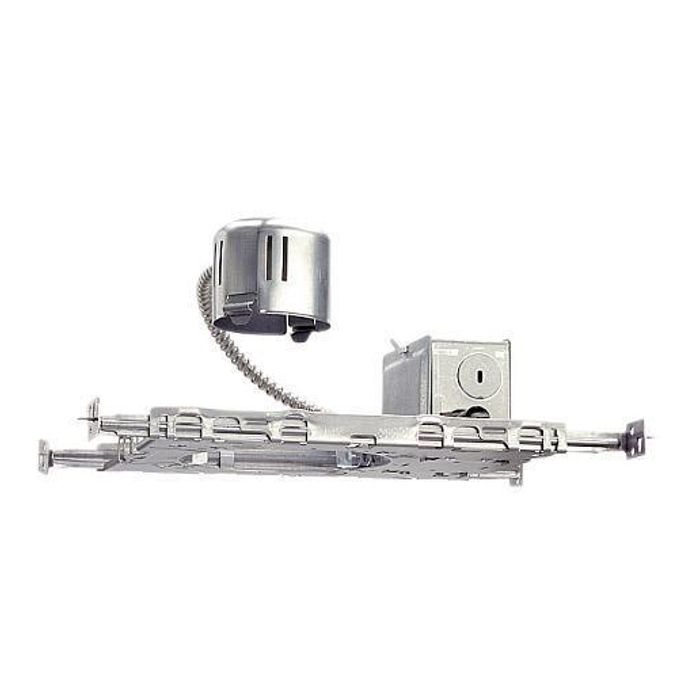

3-3/4'' Aperture Lytecaster® Incandescent Non-IC Frame-in Kit

Features:
• Mounting Frame: 20 ga.(.032") galvanized steel. Four slots are positioned 90º apart to simplify alignment of luminaires.
• Rotoclips: Easy reflector trim installation. Push-in / twist-out Rotoclips hold reflector flush to ceiling installation.
• Mounting Bars: 20ga. galvanized steel. Lockable on frame-in kit. Extend from 14" (356mm) to 25" (635mm). Pre-installed integral nails for secure attachment to wood joists. Attaches to T-bar ceilings without the need of accessories.
• Snap-on Socket Cup: .030 deep-draw galvanized steel. Adjustable to accommodate different lamps. Unitized optics assures accurate lamp positioning. Acts as a temporary work light during construction.
• Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with 18ga. SEW leads connected to junction box.
• Junction Box: 4" (102mm) x 3" (76mm) x 2" (51mm) 18 ga. galvanized steel. cULus certified for maximum of 8 No.12 ga. 90º C through branch circuit conductors. Pry-out knock-outs accept BX cable. Easy access from both sides with snap-on covers.
• Thermal Protector: Meets cULus requirements. Insulation, if used, must be kept 3" (76mm) away from luminaire's sides and junction box.
