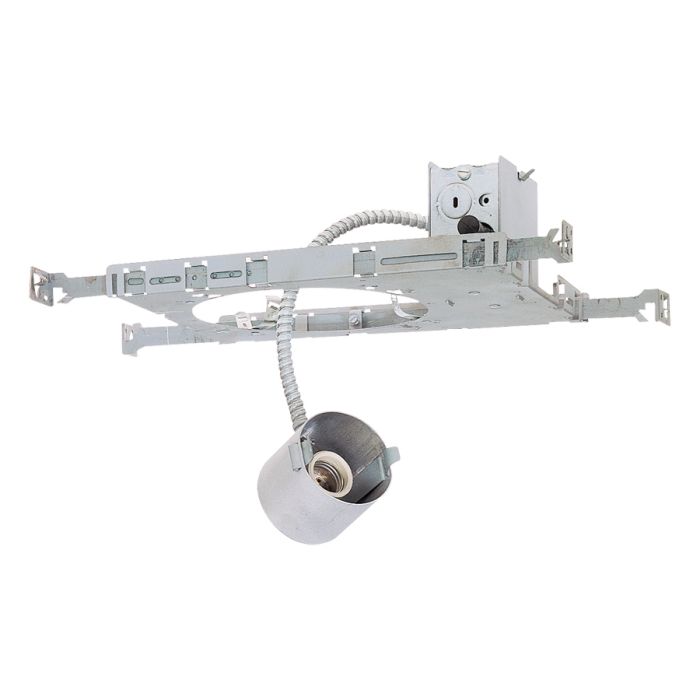

6 3/4" Aperture Lytecaster® Incandescent Standard Frame-In Kit

Features:
• Mounting Frame: .036" (#20 ga.) galvanized steel.Accommodates all ceilings up to 1” thick; including existing or inaccessible areas. P1M version has 3/8” deep integral plaster lip. Four slots positioned 90° apart to simplify alignment, breakout section and anchor nails permit installation in existing ceilings from below. Push-in/twist-out rotoclips hold reflector flush to ceiling.
• Junction Box: 4" x 3 1/2 x 2”: .063 (#14 ga.) galvanized steel. U. L. listed for maximum of 8 No. 12 ga. 75° C through branch circuit conductors (60° C end of run). Integral cable clamps permit attachment of nonmetallic Romex® or armored cable without need of additional connectors.
• Mounting Bars: .059” (#16 ga.) galvanized steel. 13” long bars extend to 27”, rotatable and lockable, with integral T-bar tabs. Attach to wood joist or T-bar ceilings without need of accessories.
• Socket Housing: Impact extruded aluminum or galvanized steel.
• Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with #18 ga. SF1 leads to junction box.
• Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3” away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.
